LEAP

The Carry Park series is a lineup that emphasizes compact, simple, and affordable products. The Carry Park series will be interspersed among our mainline series, but our unwavering commitment remains to experimentation and innovation. We firmly believe that the Carry Park series will bring more surprises to everyone!

The first product in the Carry Park series is the Leap slider. Our initial vision was to design a short-travel, compact slider to provide players with more creative space and DIY enjoyment.

To achieve the desired feel of the Leap, we conducted numerous trials and explorations, resulting in a structure that gives the Leap a relaxed feel somewhere between mechanical and tactile feedback. Thanks to this new structure, we have more room to innovate. In a slider, feedback at the end is crucial as it provides a stronger cue for players when completing a series of actions, triggering the release of dopamine. To achieve this effect, we employed customized magnetic buckyballs that jump back and forth due to magnetic attraction during pushing, creating a unique return feedback.

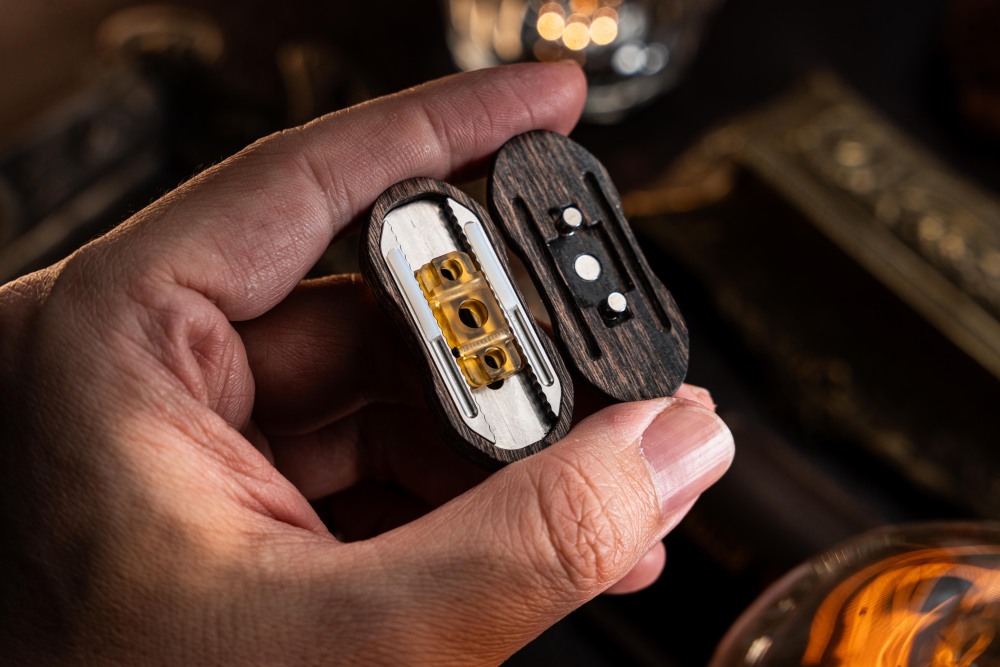

The Leap features a screw-less design, allowing for easy disassembly by simply pulling it open at a specific angle. At the same time, it is resistant to disassembly during casual play. Additionally, the left and right limit design enables players to place items such as beads or Teflon strips to meet different tactile needs.

The design of the Leap breaks away from the traditional square concept, adopting a CNC fully streamlined curved surface to create a sci-fi visual effect while also providing a more comfortable grip. Its compact size (approximately 45mm X 20mm X 14mm) makes it highly suitable for daily carry and fidgeting, and the sound it makes won't easily disturb others, whether in an indoor or office environment.

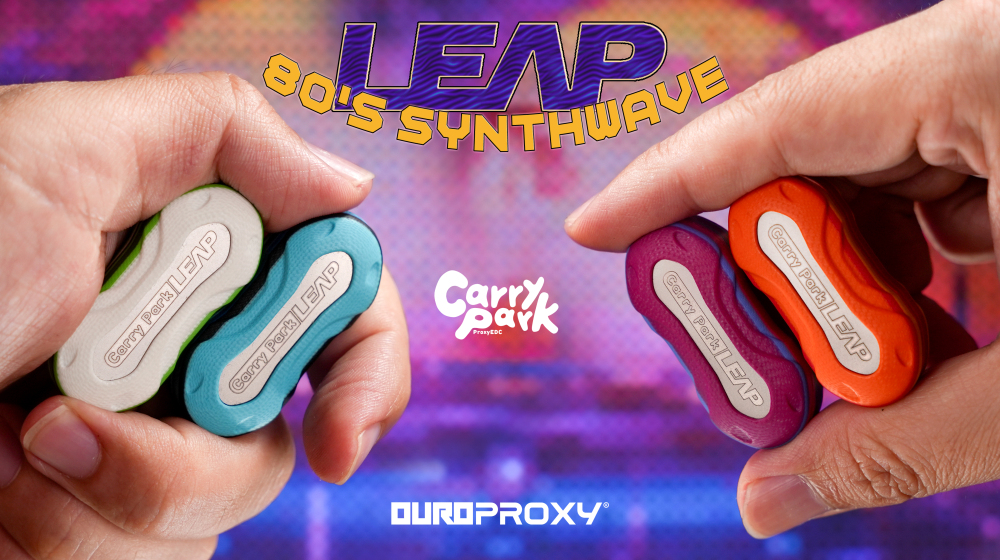

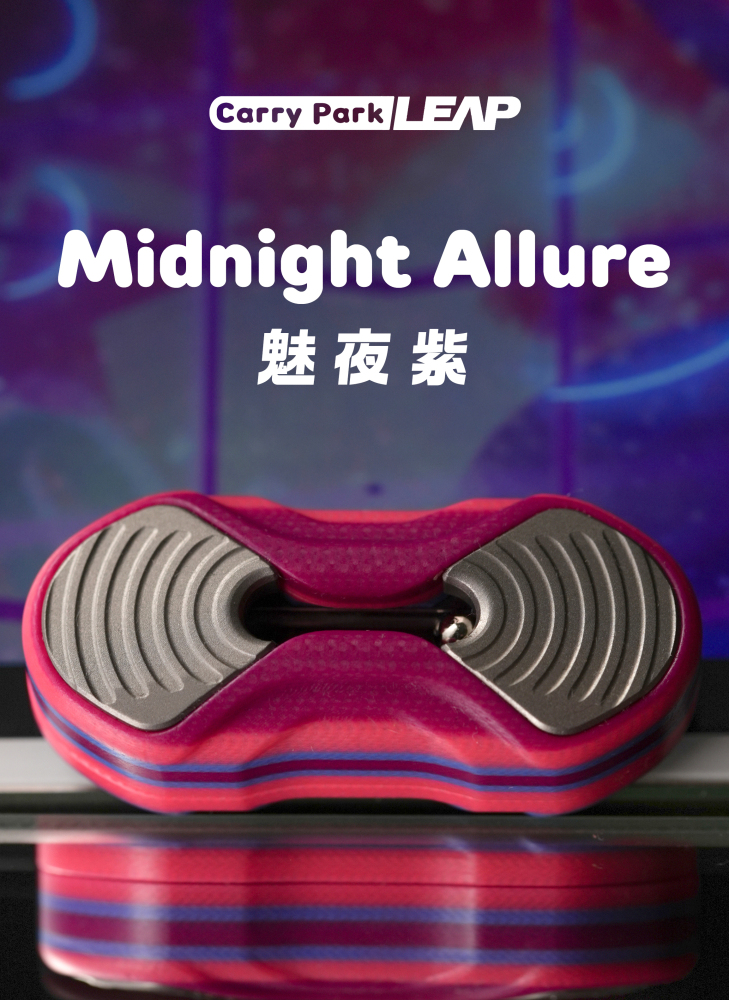

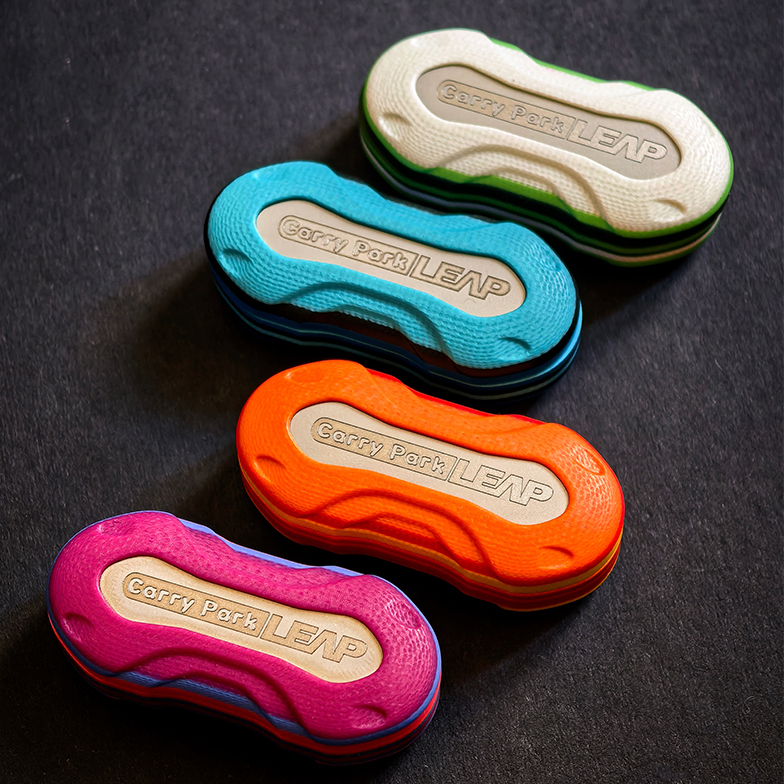

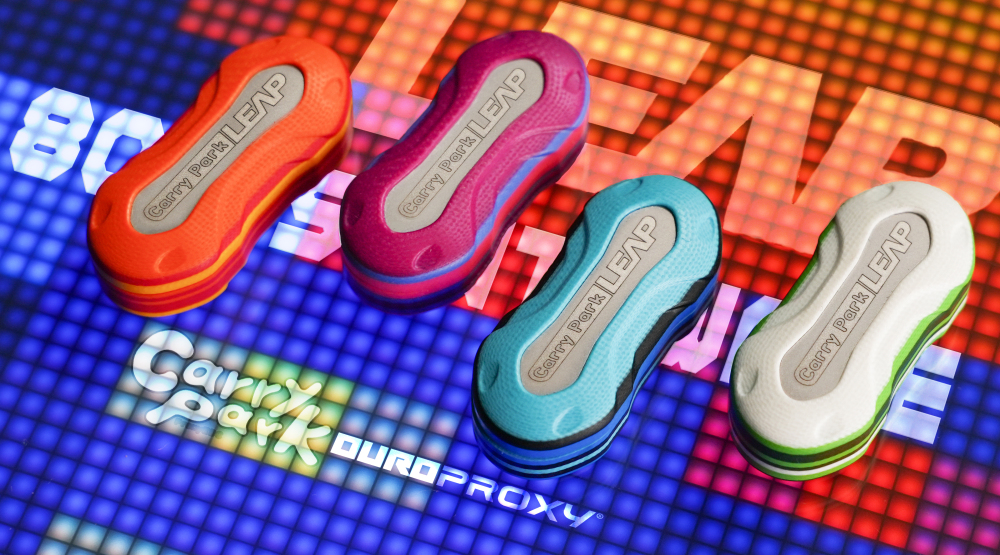

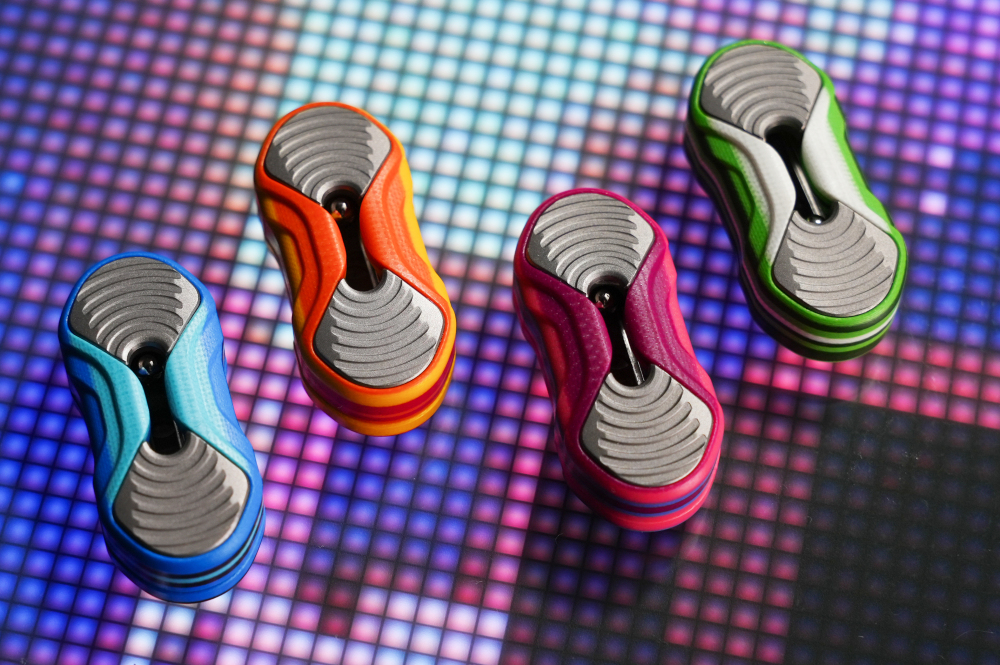

Leap Slider - 80s Synthwave Series

Leap: A Mechanical Symphony from the Golden Age of Innovation

Leap slider utilizes the combined action of springs, beads, magnets, and Buck balls to create a unique tactile sensation.

Under the dual action of mechanical and magnetic structures, the pushing sensation is very dense. When pushed to the endpoint, it will end with a Buck ball impact. The clever combination of two different tactile sensations continuously outputs dopamine at your fingertips during a short stroke. Compact size, screw free structure, and a wide range of customized DIY accessories allow you to customize your own unique Leap.

In the 1980s, electronic technology shone like a galaxy, and mainframe computers reshaped the world order. Human aspirations for the future were surging between transistors and binary systems. Leap takes mechanical precision aesthetics as its soul, taking you back to that golden era full of opportunities, awakening neon romance with fingertip touch.

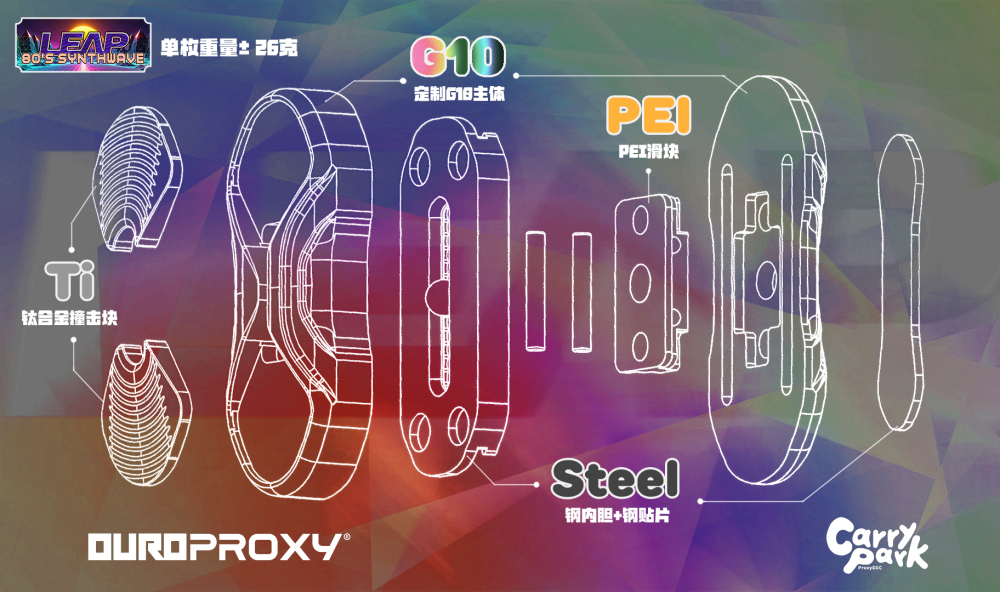

Although Leap is small in size, it uses 7 components in combination. 4 types of materials are used in total. The outer shell is customized fiberglass G10. The external impact block is Ti. The inner liner is SS. The internal push block is PEI.

The hardness and density of G10 material are closer to metals and are often used to make knife handles. The fiberglass G10 material provides higher protection for the Leap. At the same time, the low-density characteristic of G10 can generate excellent penetration feedback transmission, making the vibration more intense.Proxy EDC personally matched each layered color. Each layer of color separation lines is layered and pressed to achieve the unique appearance of the Leap, reflecting beautiful curves and surfaces, making its visual more three-dimensional. But the streamlined appearance and three-dimensional degree also increase the difficulty and scrap rate of CNC, and raise production costs.

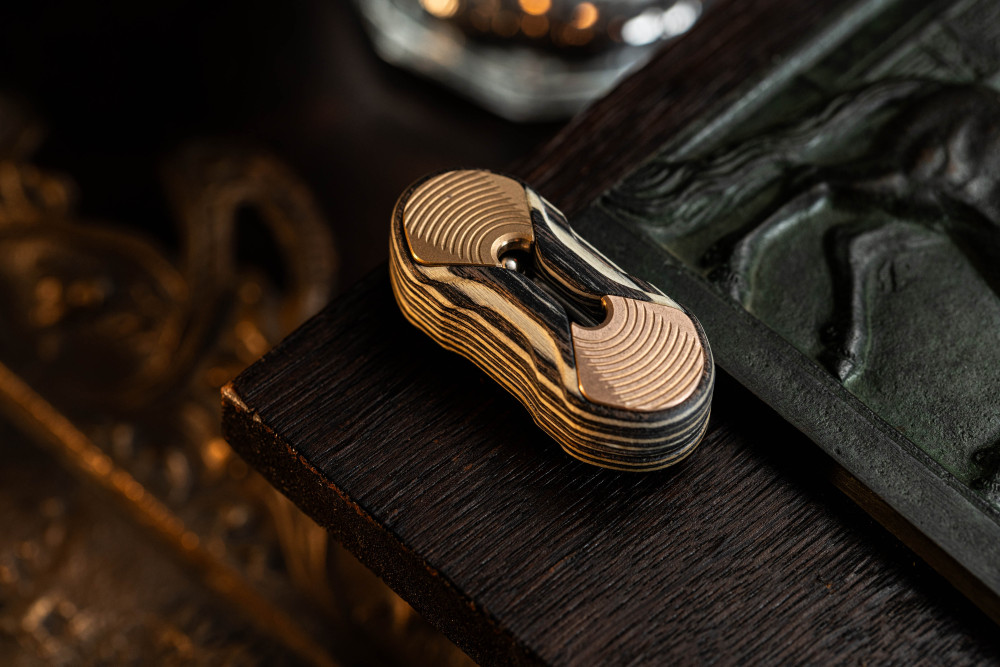

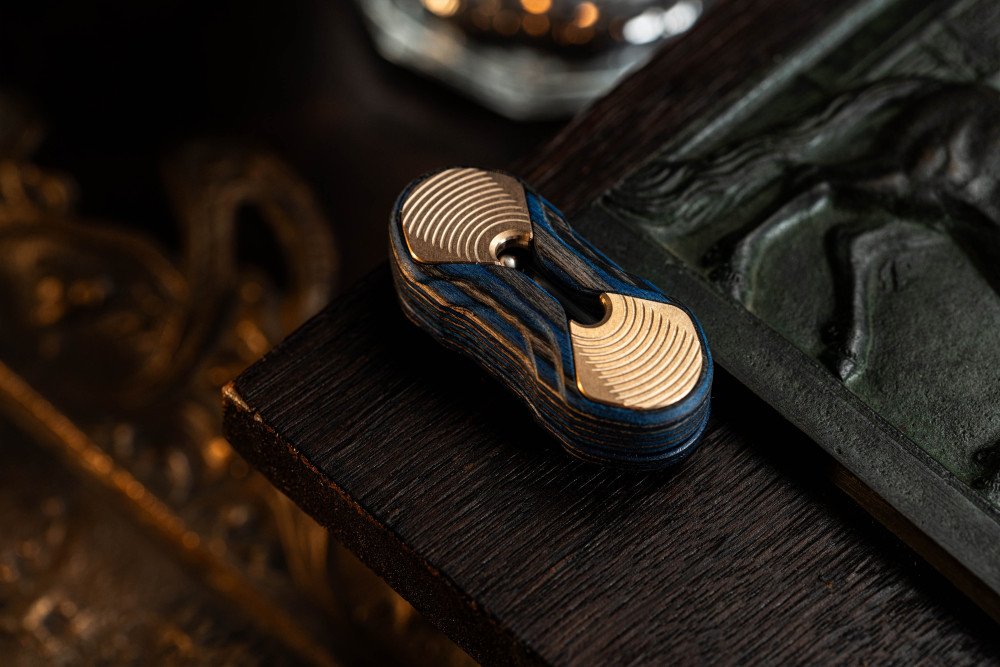

In order to achieve the best weight balance and excellent hand feel, the Buck ball impact blocks at both ends are made of Ti, making the jumping impact at the end of the Buck ball more crisp and powerful. The texture spacing of the impact block is also carefully designed to make it easier to clean and maintain. Internally, PEI push block is used in combination with SS inner liner to reduce the friction coefficient. The accessory package comes with a Teflon strip (which needs to be cut by yourself) that can be placed on both sides of the track to achieve the best silky feel.

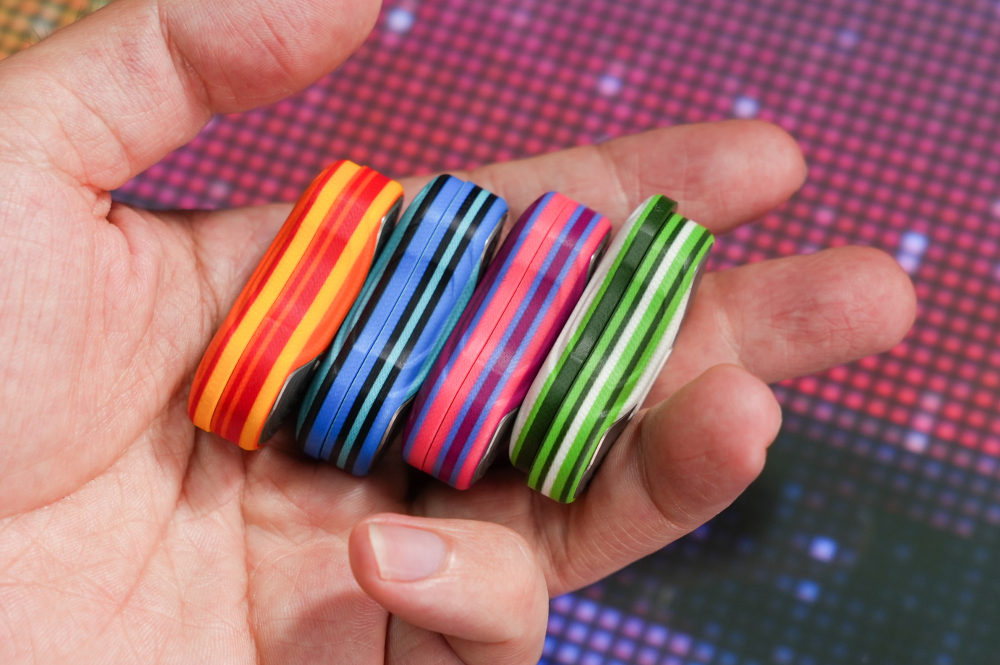

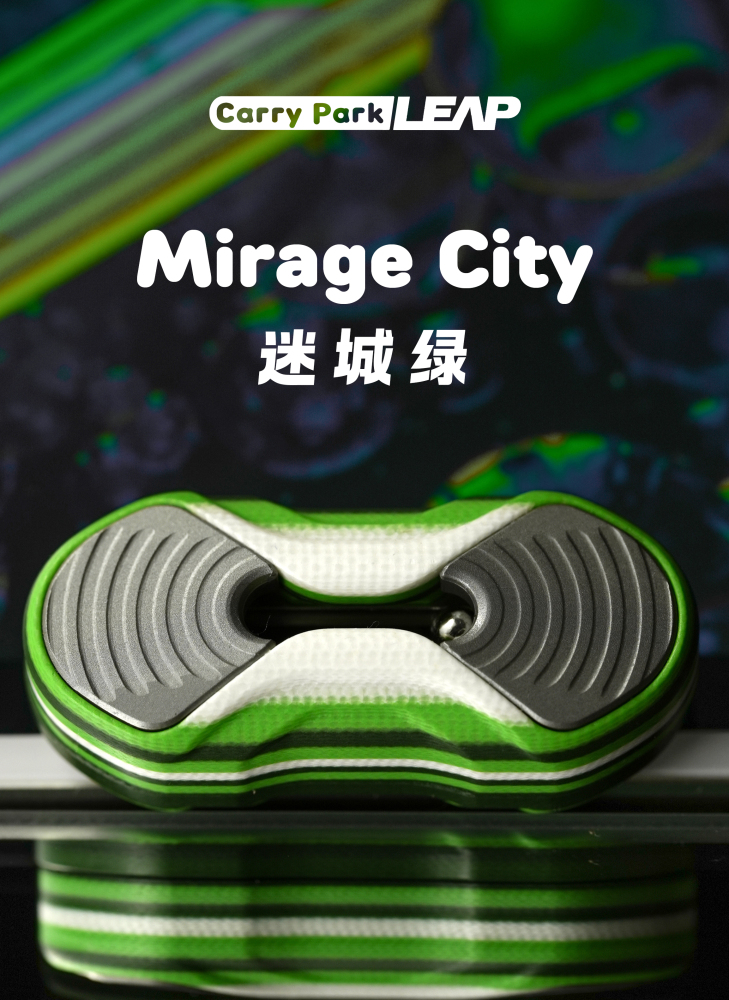

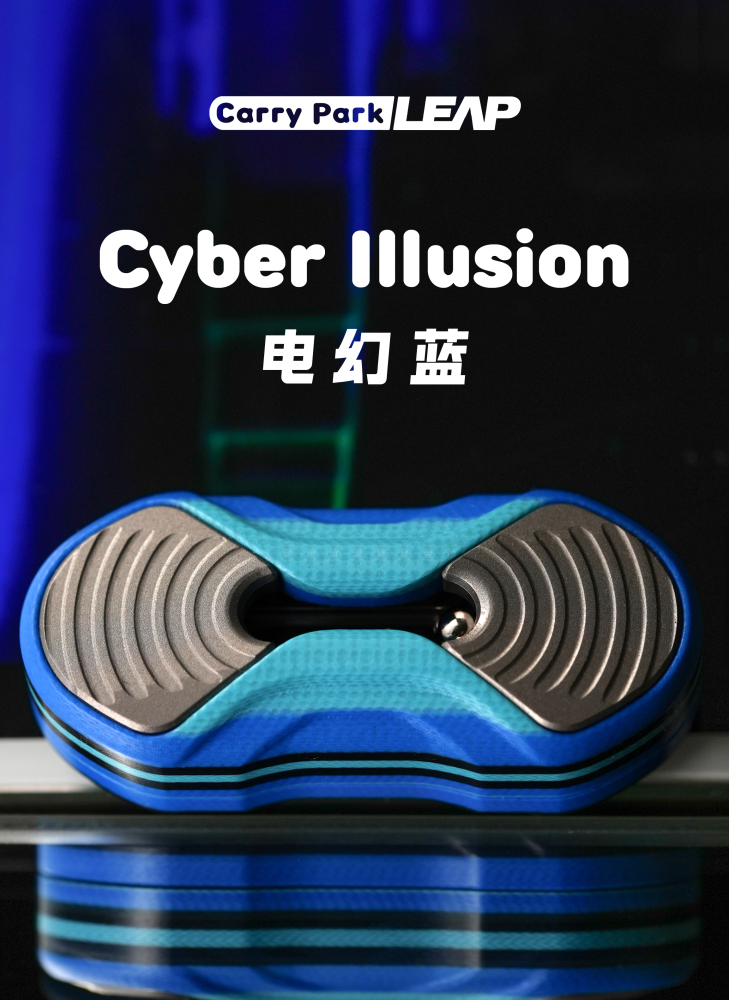

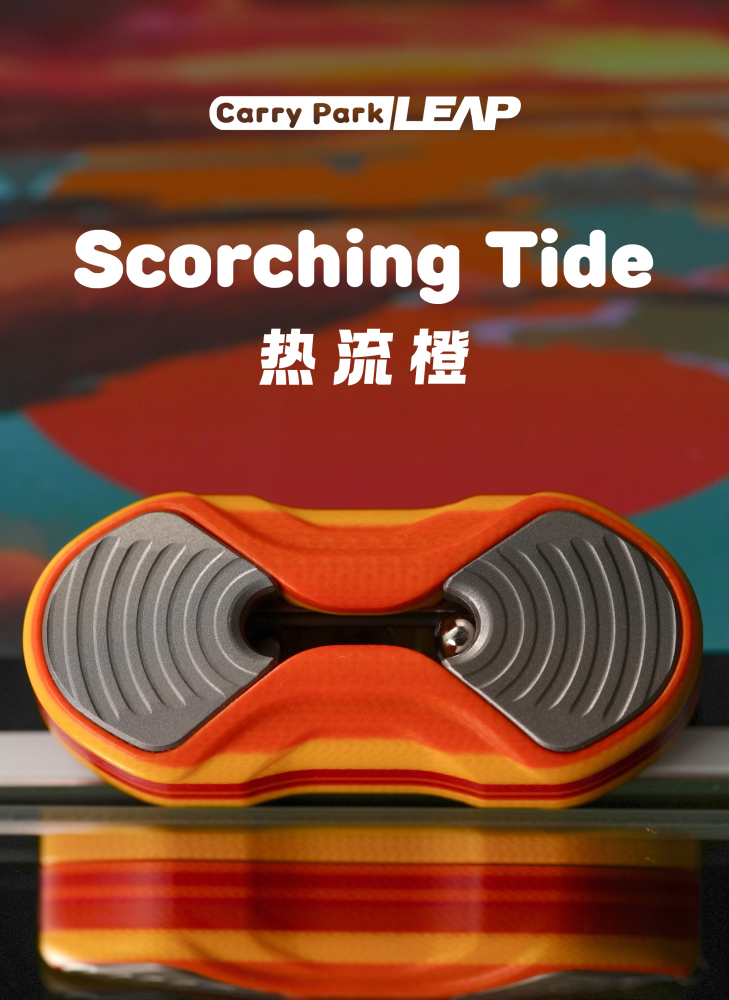

Blind box with four randomly selected colors, featuring a chance to obtain the Tech Wood hidden edition (limited availability).

Product Specifications

• Main Body: Custom G10
• Surface Finish: Oil-immersed
• Impact Block: Titanium alloy, sandblasted
• Internal Sleeve: Magnetically polished steel
• Pusher: PEI
• Weight: ~26g per unit



Accessory Kit Includes

• 2x Custom springs (4 types)

• 1x 3cm PTFE strip

• 2x 3×3mm magnets

• 2x 3×2mm magnets

• 4x 3×1.5mm magnets

• 4x 4×3mm magnets

• 4x N35 Buckyballs

• 3x N52 Buckyballs

• 4x 1.588mm POM balls

• 4x 1.588mm zirconia ceramic balls

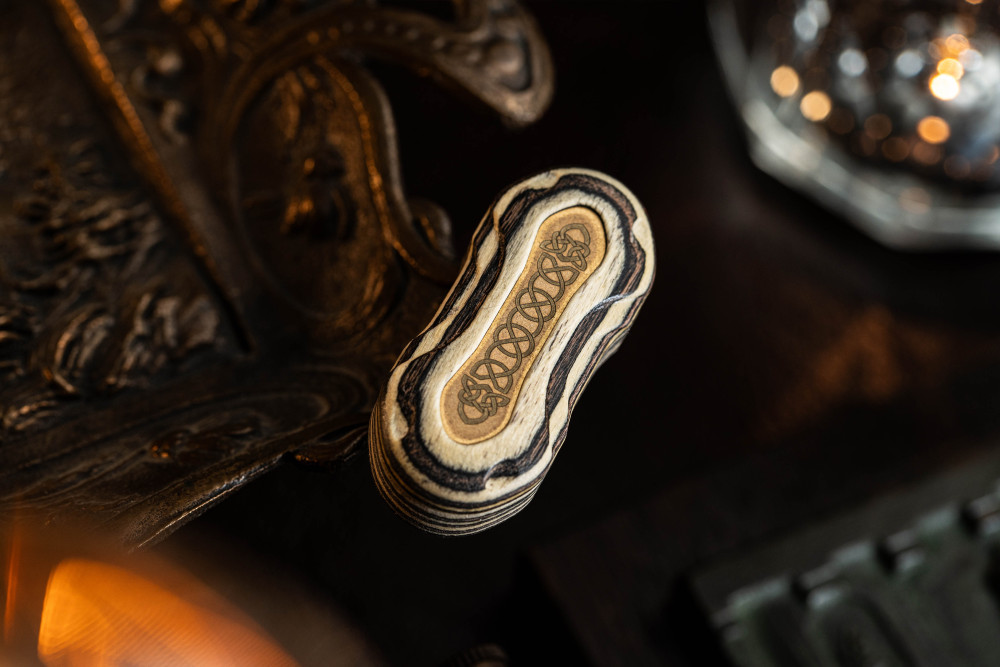

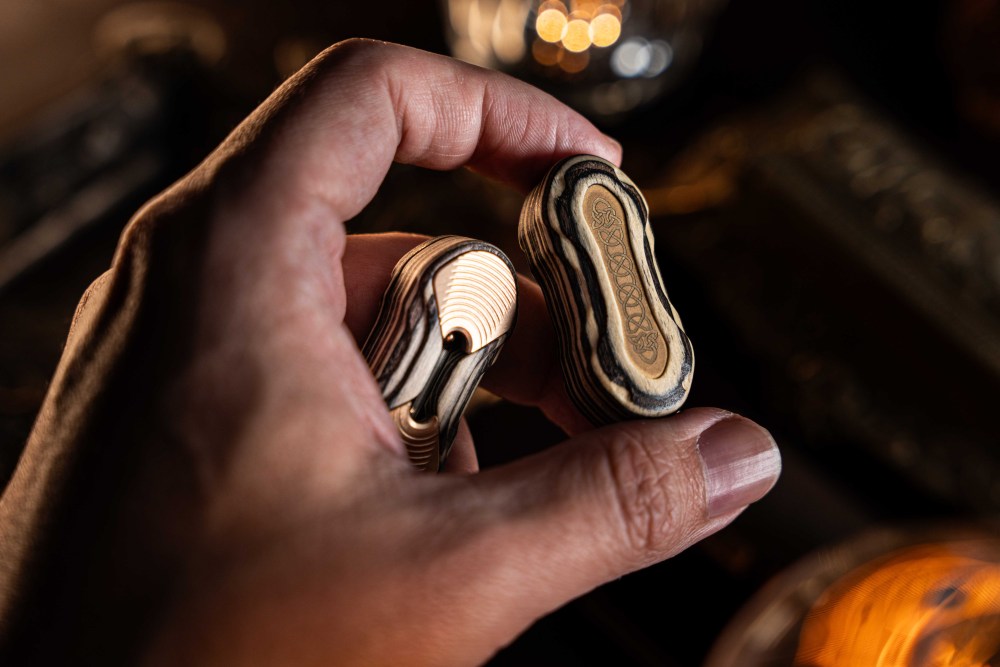

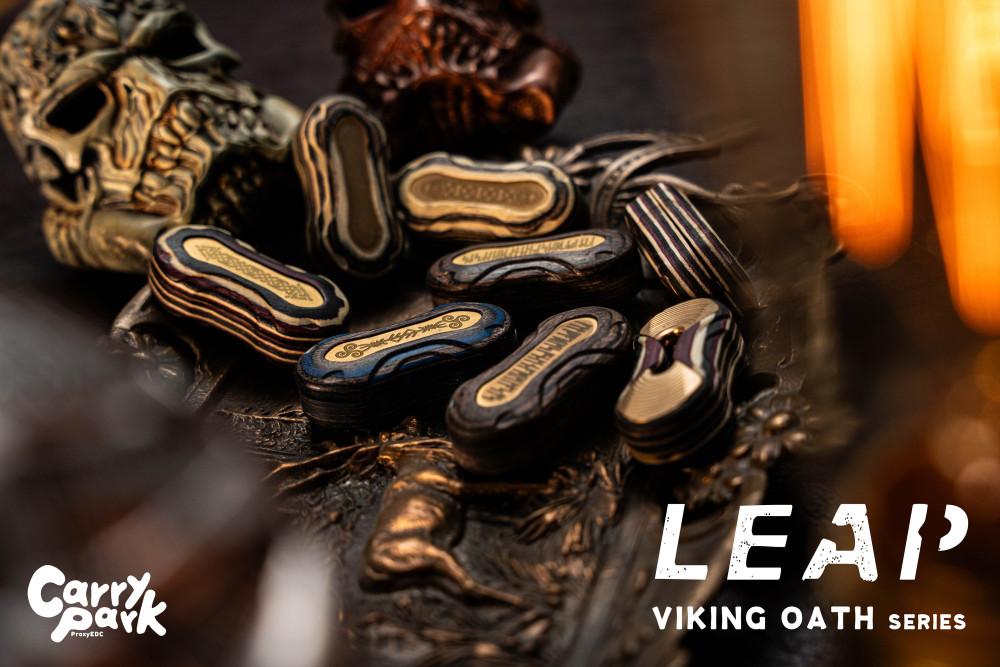

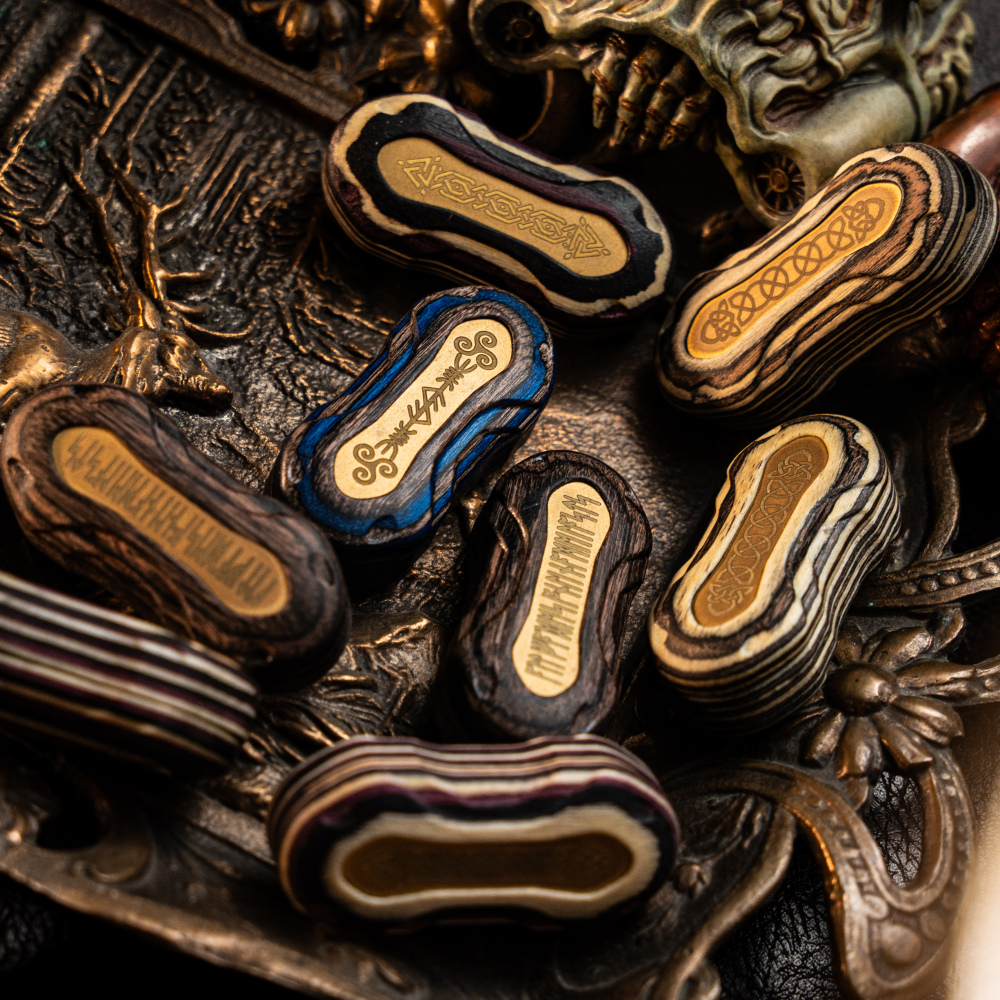

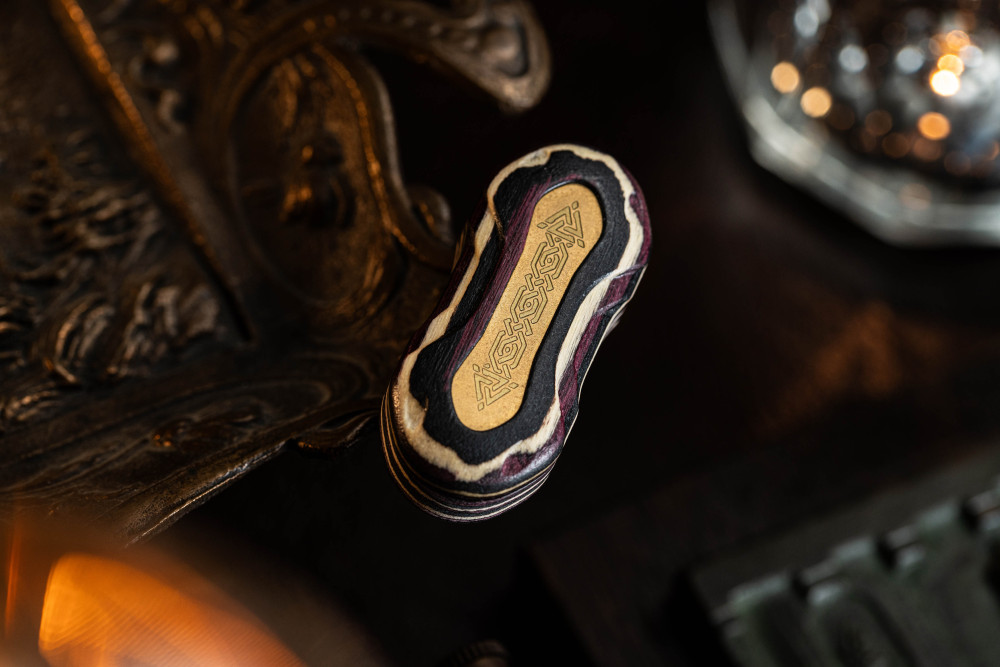

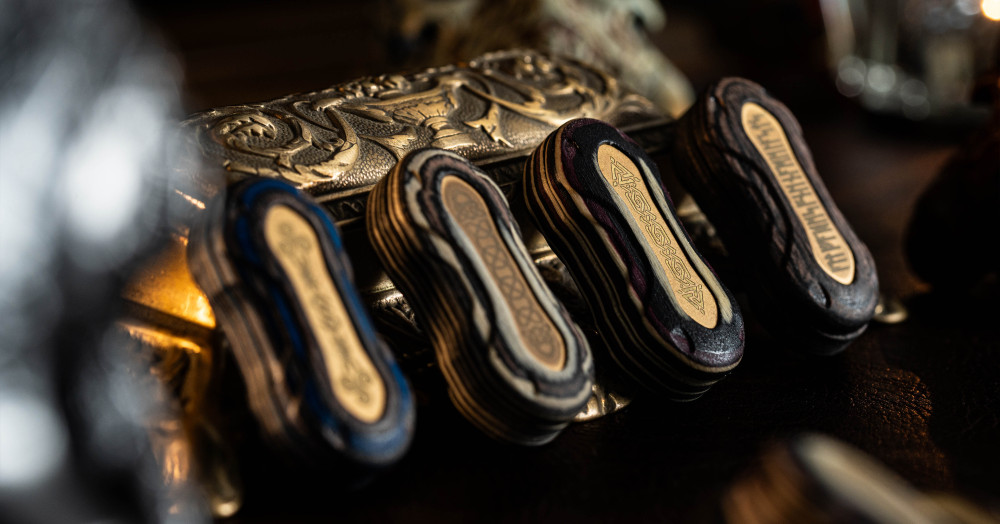

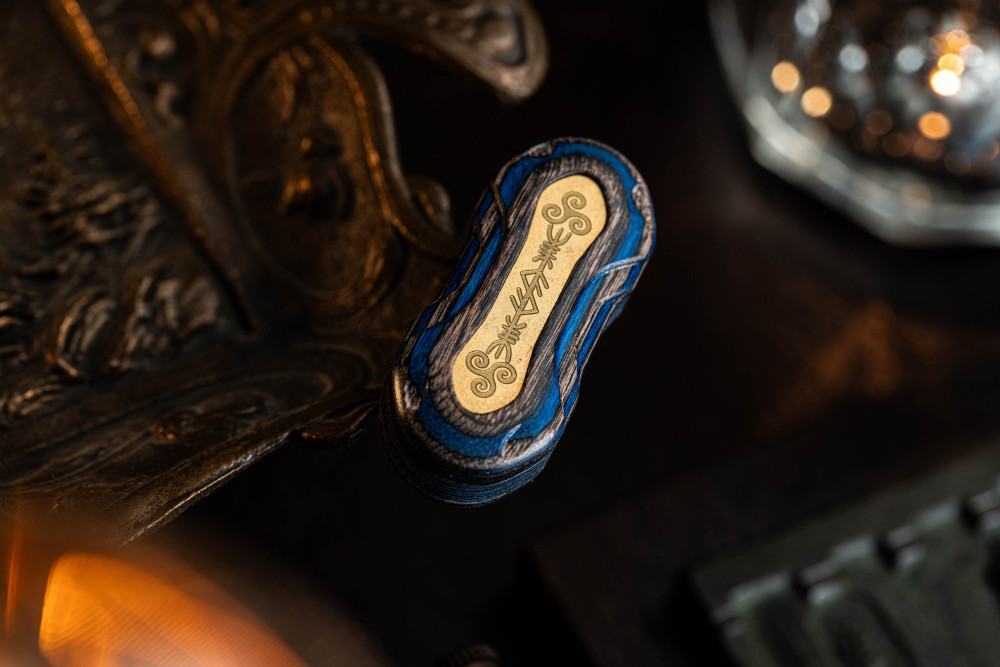

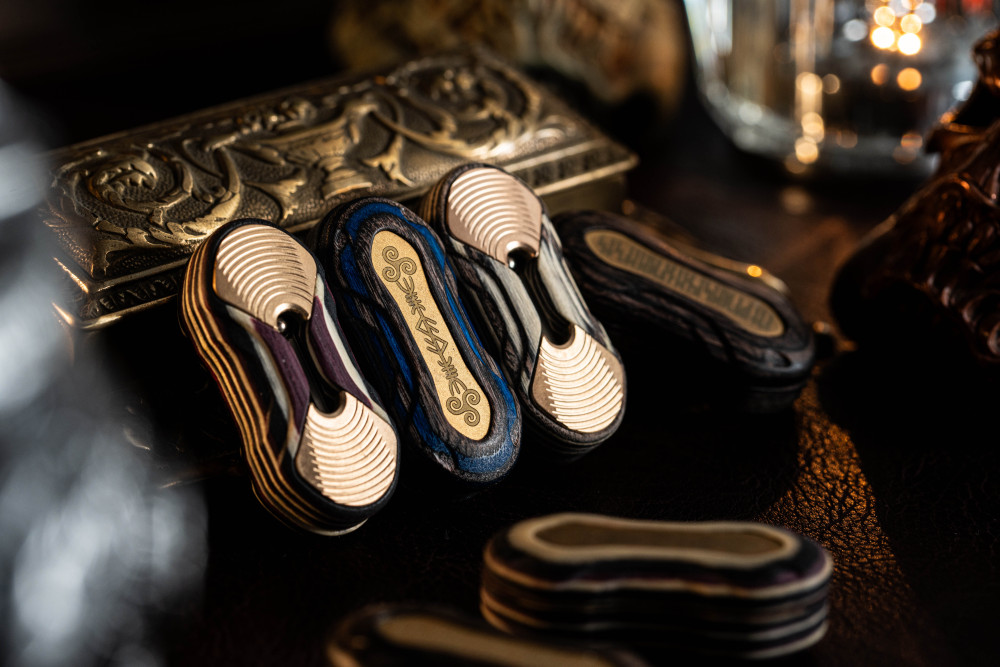

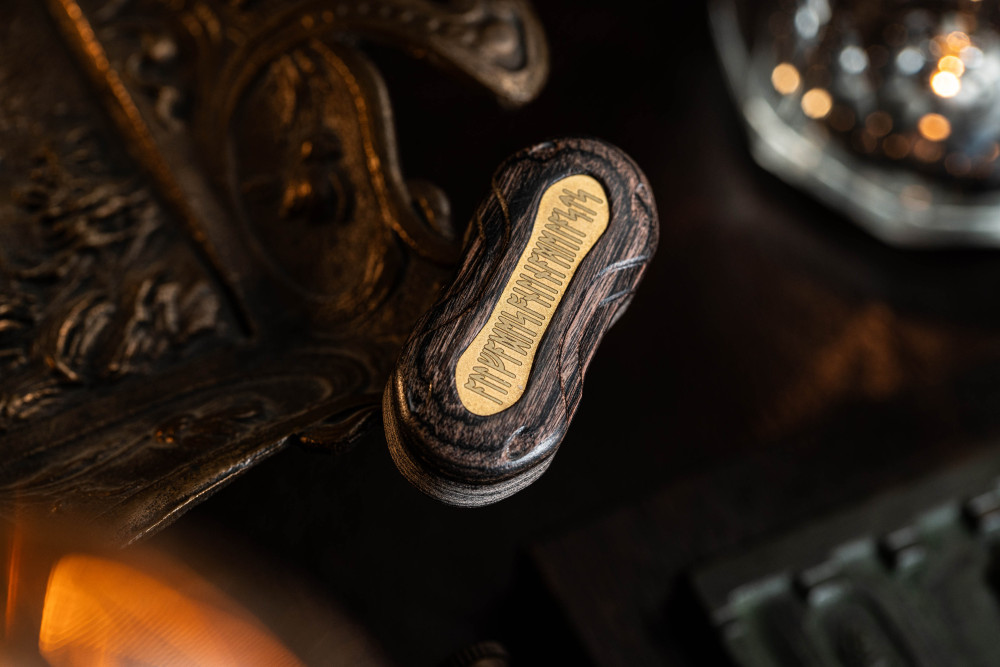

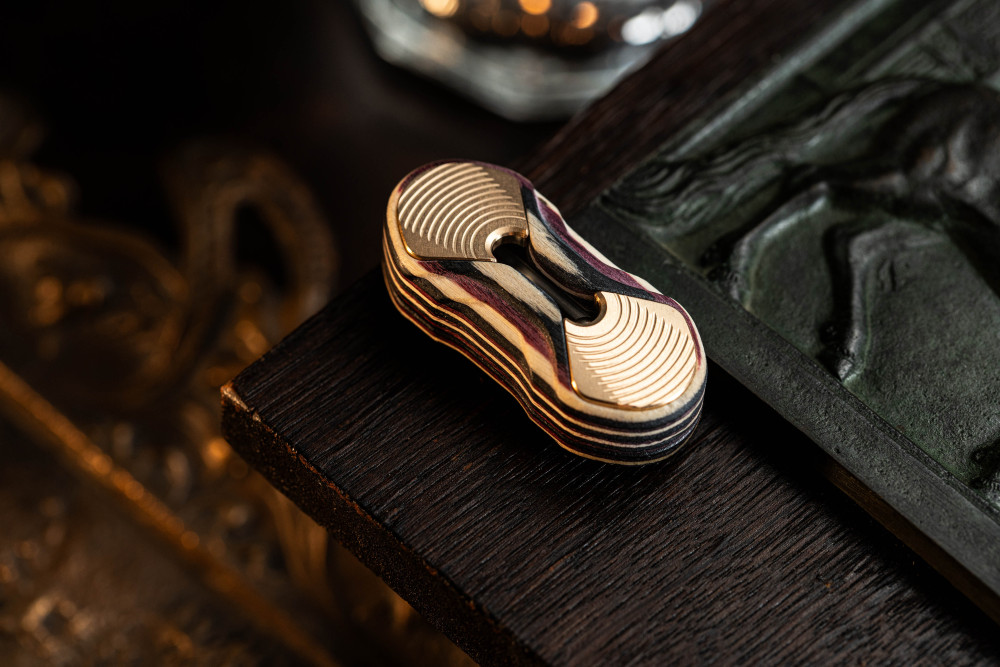

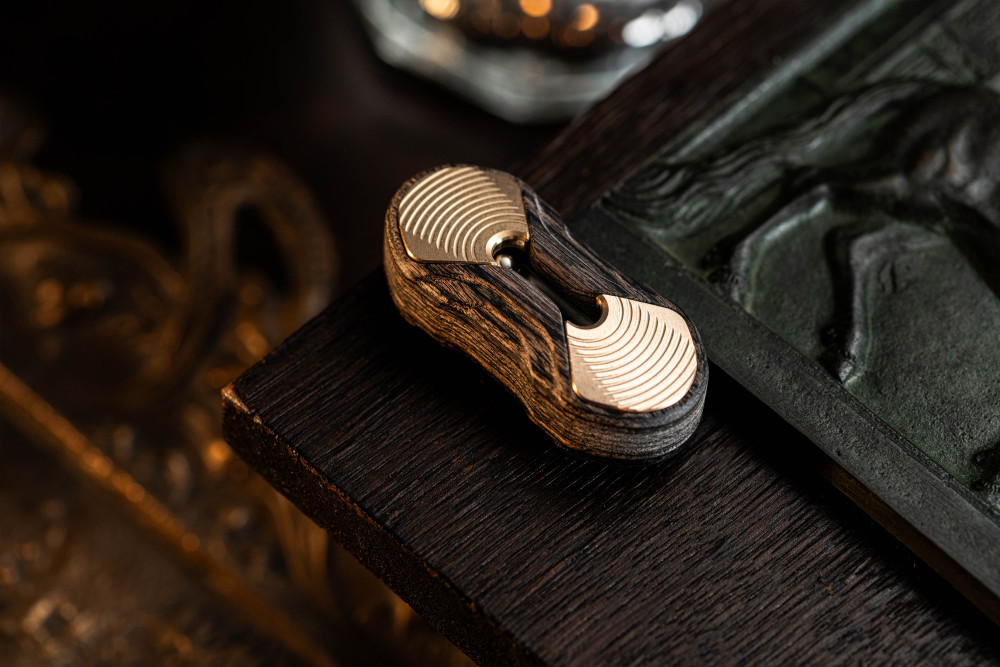

Leap Slider - Viking Oath Series

Upper and lower bodies: Techwood (American-made)
Surface treatment: Oil-polished
Upper and lower plates & inlay pieces: Brass
Surface treatment: Light knife-patterned texture
Inner core: Steel
Push block: PEI

Accessory kit details:

• Two sets of four custom springs
• One Teflon strip (approx. 6cm) of 2.0mm thickness
• Two 3*3mm magnets
• Two 3*2mm magnets
• Four 3*1.5mm magnets
• Two 4*3mm magnets
• Four n35 Buckyballs (magnetic spheres)
• Three n52 Buckyballs
• Four 1.588mm POM beads
• Four 1.588mm zirconia ceramic beads
• One Teflon shim for inner core elevation



Notes:

1. Due to the random nature of wood grain, each piece will have a unique pattern. Proceed with caution if this is a concern.
2. This is a limited-edition product. If the wooden shell is damaged due to human error, official after-sales service is unavailable; third-party repair is required.
3. If the wooden part becomes dry or whitens due to environmental factors (e.g., geography), apply wood protection oil (e.g., tung oil). Do not use chemical oils for maintenance.
4. For brass oxidation, use brass polishing paste or a fine-grit polishing strip. Do not use sandpaper.
5. Contains small parts. Keep out of reach of children. DIY assembly may be challenging; prepare a workspace beforehand to avoid losing small components.
6. The inner core is magnetically polished. Uneven textures are normal and do not affect functionality.
7. This is not a mainline series product. Do not subject it to violent testing.
